| suitable material | PPGI |
| power | customized |
| color | as required |
IBR 840 ibr metal sheet roof panel roll forming machine/roof press making machine
Roof tile making machine consists of uncoiler and its base,infeed guides,fixed position driven forming stations,pressing die,shearing device,hydraulic station,PLC control console and so on.
Our company has dozens of profile models for this series roll forming machine,We can design different kinds of profile and fittings for machine,as per customers’ requirement.
1 Suitable material color steel sheet, galvanized steel sheet, aluminium sheet
2 Material width your required
3 Material thickness 0.3-0.8 or as your required
4 Working speed 8-12m/min, can be 20-25m/min
5 Main motor power 5.5kw with cycloidal with reducer
6 Hydraulic pump power 4kw
7 Electrical control system PLC control system with inverter
8 Shaft diameter 75mm
9 Roller station 18 rows, depend on your panel profile drawing
10 Roller high grade 45# steel, hard chrome plating
11 Working time 24 hours
12 Workers 1-2 only
13 Cutting head material Cr 12 mould steel with quenched treatment
14 Voltage 380V 3Phase 50Hz or as your required
15 Weight 3.5T
16 The machine size 8500mm*1500mm*1500mm
17,Enjoy after-sales service for life
Our Company Main Roll Forming machines
1. Different types of roof profile drawing forming machine ;
2. Curve roof roll forming machine; 3. Ridge cap roll forming machine;
4. Floor deck roll forming machine; 5. Rain gutter roll forming machine;
6. Downpipe roll forming machine; 7. Highway guardrail roll forming machine;
8. Roller shutter door forming machine; 9. Door frame roll forming machine;
10. CZU purlin roll forming machine; 11. Light keel roll forming machine;
12. Slitting machine (lines); 13. Shearing/bending machine;
14. Decoiler(Hydraulic decoiler, electric decoiler and manual decoiler) and so on
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need
your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to CangZhou Xi (1 hour), then we can pick
up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai HongQiao to Cangzhou Xi(4.5 hours), then
we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.if after warranty period,we can
through negotiation for to solve the problems,and we supply the technical support for the whole life of the
equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting
various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on
developing how to make machines much more automatic, accurate and high quality. We can make sure
|
|

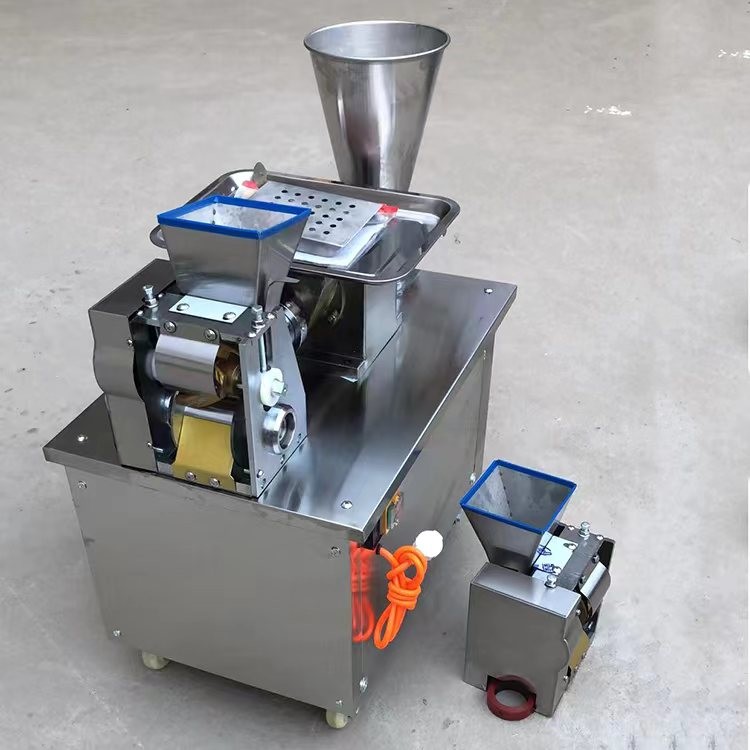

2024 Automatic dumpling machine Food Machinery Food Dumpling Machine is simple, efficient and fast Images
|
